Shanxi Tongda (Group) Co., Ltd. Painting workshop painting process control project

First, the customer name:

Shanxi Tongda (Group) Co., Ltd.

Second, the project profile:

1. Scope of supply: Engineering design, manufacture, installation and commissioning of the coating and conveying system of the paint shop frame.

2, project introduction

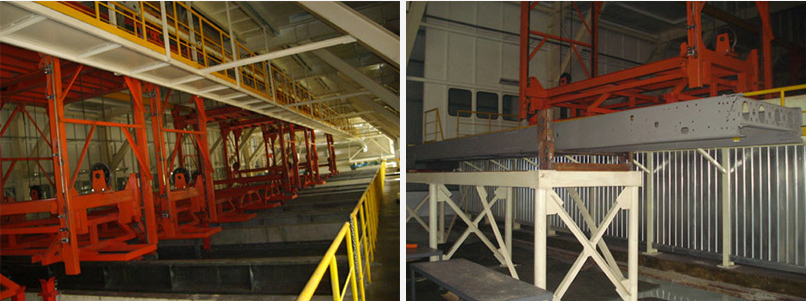

The conveying system is mainly used for the upper part of the frame, pre-treatment, electrophoresis, drying, strong cooling and lower parts. The workpiece is placed on the bracket by the electric single-girder crane, and the program-controlled driving runs to the top of the workpiece. The workpiece is manually hung on the hanger for pre-treatment and electrophoresis. After the processing, the workpiece is placed on the transfer vehicle and transported to the synchronization. The upper end of the double-chain conveyor hangs the workpiece onto the hook of the double-chain conveyor for drying and strong cooling. The system has a total of 7 program-controlled vehicles, which complete the degreasing, cleaning, surface adjustment, phosphating, cathodic electrophoresis, UF liquid cleaning and other processes. The system adopts the program-controlled driving developed by the company, the production program: 40,000 frames/year; the production cycle: 6min; the workpiece dimensions: 11565×1080×800mm; the quality of each hanging: 2800kg.
