Introduction

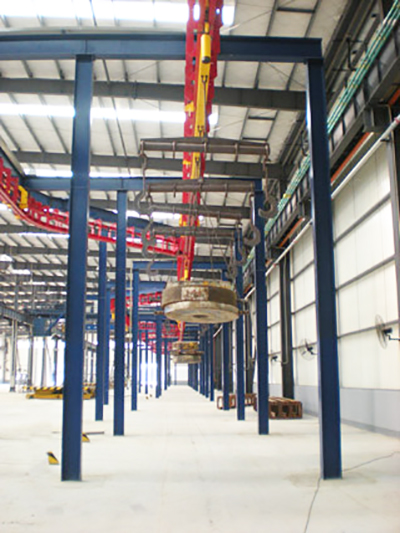

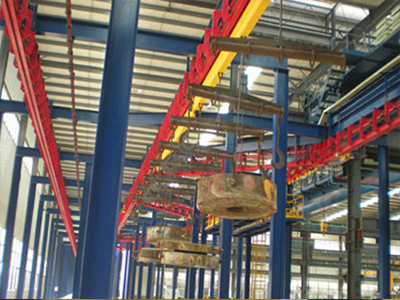

Heavy overhead power & free conveyor is a high quality product in our company. This conveyor system consists of drive-unit, take-up unit, rail, power-chain, load-trolley and load-bar etc. OMH has many successful applications for this kind of conveyor system in the fields of construction machinery, metallurgical industry, etc.
Features
For heavy overhead power & free conveyor, the free rail is made of a double steel I beam. The load-trolley wheels run on top of this I beam unit. The inside edges of the I beam unit is for the trolley guide wheels. And power chain is forged chain. Because of its unique simple structure this conveyor has a high carrying capacity. It is compact, reliable, easy to manufacture and install, operates smoothly and easy to use.
Product Standards and Technical Specifications
Power Chain：X458/X678
Rail Material：Power Rail：I10; Load Rail：I14
Single Load Capacity：3000Kg
Running Speed： 10m/min
Turning Radius for switch：R1000×15°；R1000×30°
Minimum Horizontal Turning Radius：R2000
